B-X Series Universal Grinder (Group)
category:Crushing Equipment
product description:The universal crushing unit consists of a shredder, a material collection box and a ESC vacuum cleaner. To solve the material in the crushing process dust flying. The working principle of the machine is the material into the crushing chamber, in the high-speed rotation of the movable gear and fixed gear between the teeth of the impact, shear, friction and the interaction between the material under the impact of crushing, the screen after screening Become the required powder.
Features and uses
The machine (group) for the pharmaceutical, chemical, food, pesticide and other industries brittle materials crushing, crushing and dust as one of the new generation of crushing equipment, uses a very wide range.
Structure and principle

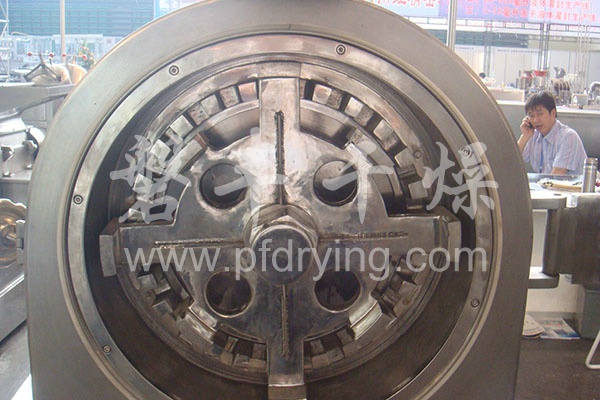

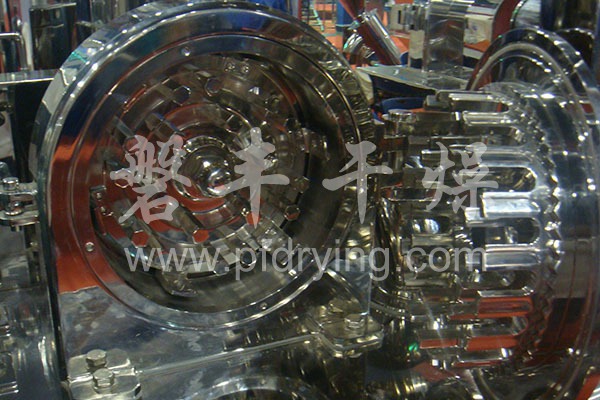

The unit uses the relative movement between the movable gear and the fixed gear, so that the material is impacted by the teeth, friction and the material between each other; Smash the material by the rotation of the role of centrifugal force automatically into the predator bag, dust from the dust box by bag filter recovery. The machine according to "GMP" standard design, all made of stainless steel, the production process without dust flying. And can improve the utilization of materials, reduce business costs, has reached the international advanced level.
Technical specifications
model |
unit |
20B/20B unit |
30B/30B unit |
40B/40B unit |
60B/60B unit |
Production capacity |
kg/h |
60-150 |
100-300 |
160-800 |
500-1500 |
Spindle speed |
r/min |
4500 |
3800 |
3400 |
2800 |
Feed size |
mm |
6 |
10 |
12 |
15 |
Crushing fineness |
mesh |
60-150 |
60-120 |
60-120 |
60-120 |
Crush the motor power |
kw |
4 |
5.5 |
11 |
15 |
Suction fan power |
kw |
1.5 |
1.5 |
1.5 |
2.2 |
weight |
kg |
250 |
320 |
550 |
680 |
Dimensions(L×W×H) |
mm |
550×600×1250 |
600×700×1450 |
800×900×1550 |
1000×900×1680 |
Dimensions (unit)(L×W×H) |
mm |
1100×600×1650 |
1200×650×1650 |
1350×700×1700 |
1550×1000×1750
|
