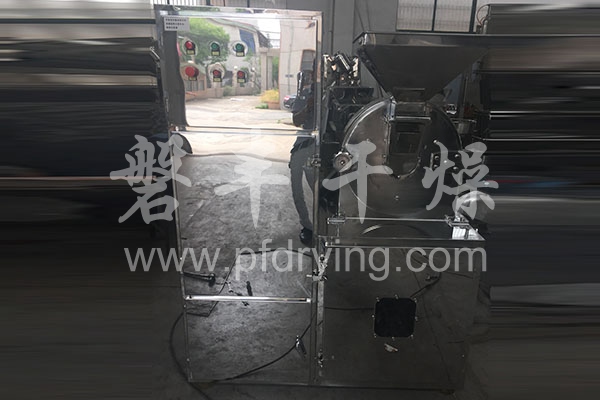

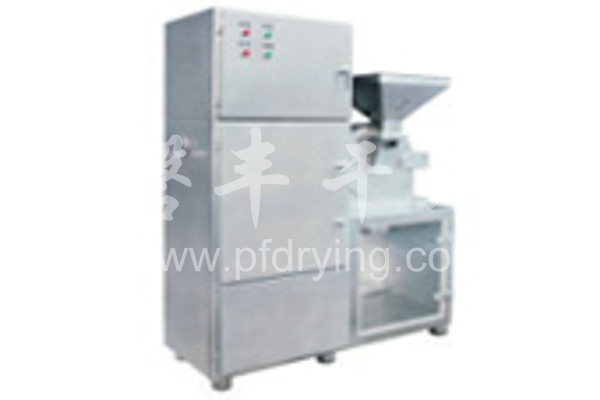

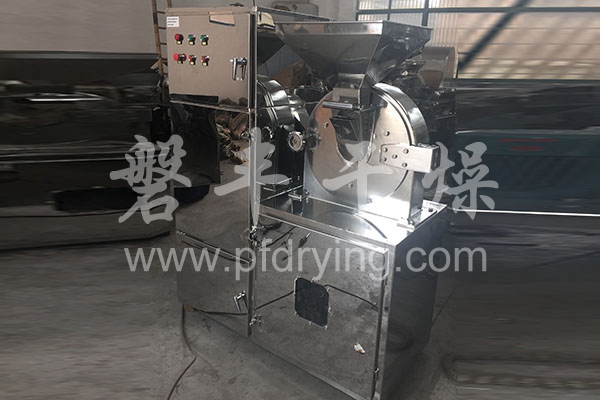

● This machine is suitable for pharmaceutical, chemical, food, pesticide and other industries brittle material crushing, use is extremely extensive.
● The machine uses the high-speed relative movement of the movable gear plate and the fixed tooth plate, so that the crushed material is pulverized by the combination of the impact, the friction and the material.
Technical Parameters:
model |
20B |
30B |
40B |
60B |
Production capacity(kg/h) |
60-150 |
100-300 |
160-800 |
500-1500 |
Spindle speed(r/min) |
4500 |
3800 |
3400 |
2800 |
Feed size(mm) |
6 |
10 |
12 |
15 |
Finished fineness (mesh) |
60-120 |
60-120 |
60-120 |
60-120 |
Motor Power(kw) |
4 |
5.5 |
11 |
15 |
weight (kg) |
250 |
320 |
550 |
680 |
Dimensions(L×M×H)(mm) |
350×600×1250 |
600×700×1450 |
800×900×1550 |
1000×900×1680 |
|
