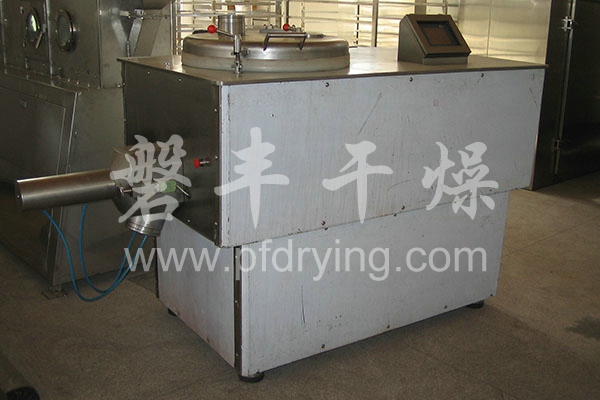

GHL high speed mixing granulator

category：Granulation Equipment

product description：GHL series of high-speed mixing granulator is from the powder material and adhesive in the cylindrical container from the bottom of the mixed pulp mixed into a wet soft material, and then by the side of the high-speed pulverized pulp cut into uniform wet particles.

Order online


Product Details

working principle

The powder material and the binder are thoroughly mixed into a moistened soft material from the bottom mixing slurry in a cylindrical container and then cut into uniform wet granules by the side high speed pulverized paddle.

Performance characteristics

◎ This machine adopts horizontal cylinder structure, reasonable structure.

◎ inflatable seal drive shaft, cleaning can be switched into water.

◎ fluidized granulation, granulation similar to the spherical, good mobility.

◎ 25% less than the traditional process to reduce the binder, drying time.

◎ each batch only dry mixing 2 minutes, granulation 1-4 minutes, work efficiency than the traditional process to improve 4-5 times.

◎ in the same closed container to complete, dry mix - wet mix - granulation, process shortened.

◎ The whole operation has strict safety protection measures.

◎ can be made according to user requirements jacket type.

Technical specifications

model	A	B	C×D	E	F
50	320	950	1250×800	970	1650
150	420	1000	1350×800	1050	1750
200	500	1100	1650×940	1450	2050
250	500	1160	1650×940	1400	2260
300	550	1200	1700×1000	1400	2310
400	670	1300	1860×1100	1550	2410
600	750	1500	2000×1230	1750	2610

name	model
name	50	150	200	250	300	400	600
Volume L	50	150	200	250	300	400	600
Yield kg/batch	15	50	80	100	130	200	280
Mixing speed r.p.m	200/400	180/270	180/270	180/270	140/220	106/155	80/120
Mixed power kw	4/5.5	6.5/8	9/11	9/11	13/16	18.5/22	22/30
Cutting speed r.p.m	1500/3000	1500/3000	1500/3000	1500/3000	1500/3000	1500/3000	1500/3000
Cutting power kw	1.3/1.8	2.4/3	4.5/5.5	4.5/5.5	4.5/5.5	6.5/8	9/11
Compressed air consumption m3/min	0.6	0.9	0.9	0.9	1.1	1.5	1.8
weight kg	500	800	1000	1300	1800	2200	2600
