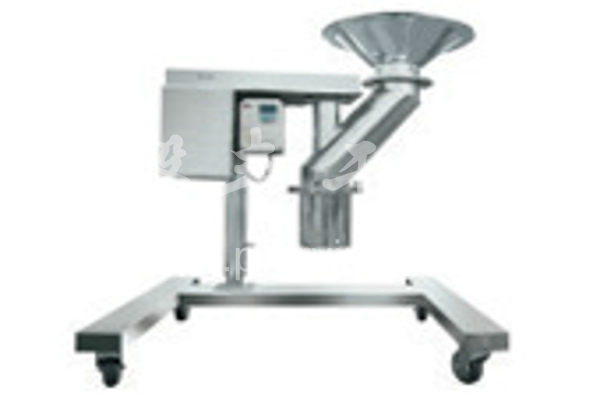

KZL series of rapid granulator

category:Granulation Equipment

product description:This machine is suitable for Chinese and Western medicine, food, chemical pigments and feed and other industries in the broken and finishing particles. ● Particle shape and specifications are obtained by various granulation processes and equipment. Will be granulated particles after the high-speed rotation of the blade combination of cutting, the screen discharge, you can get the shape and specifications of the same particle. ● All parts of this machine are made of stainless steel, surface polishing, assembly and cleaning and cleaning is very convenient

Product Details
Brief description: work fever, less dust

Category: granulation coating dryer
Detailed description:

Overview:

● work when the heat is small, less dust.
● The stator screen is made of stainless steel plate and is not easy to be damaged.
● Grinding knife and screen gap adjustable.
● Can handle viscous, gum-like, heat-sensitive and moisturizing materials.
application:
● This machine is suitable for Chinese and Western medicine, food, chemical pigments and feed and other industries in the broken and finishing particles.
● Particle shape and specifications are obtained by various granulation processes and equipment. Will be granulated particles after the high-speed rotation of the blade combination of cutting, the screen discharge, you can get the shape and specifications of the same particle.
● All parts of this machine are made of stainless steel, surface polishing, assembly and cleaning and cleaning is very convenient
Technical Parameters:

model 100 180 300
Stator diameter(mm) 100 180 300
Stator length(mm) 96 178 305
Production capacity(kg/h) 20-150 100-1500 500-2500
power(kw) 0.75 1.5 5.5
Rotating speed(rpm) 180-1400 175-1400 200-1400

Please indicate the source(:http://www.pfdrying.com/pro_show.asp?id=742)
