application:
● granulation in the pharmaceutical industry: tablets granules, granules granules, capsules granules.
● granulation of the food industry: cocoa, coffee, milk powder, granular fruit juice, spices and so on
● granulation of other industries: pesticides, feed, fertilizer, pigments, dyes and other chemical.
● dry powder or granular wet material.
● coating: particles, pills protective layer, prepared color, slow release, film, enteric coating and so on.

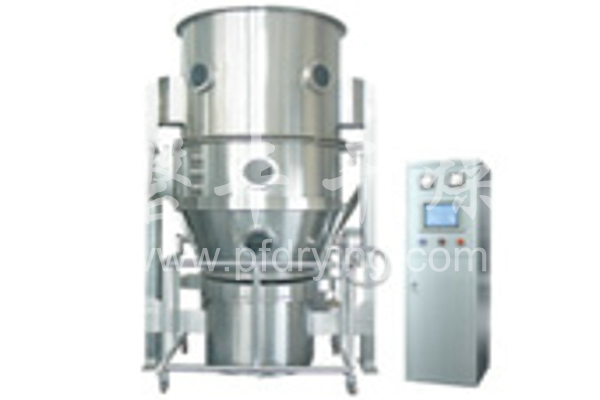

working principle:
The material powder particles are in an annular fluidized state in a raw material vessel (fluidized bed), preheated and mixed by the heated heated air, atomizing the binder solution, and collecting the particles into a mixture containing the binder Of the pellets, due to the continuous drying of hot air on the material, so that the particles in the water evaporation, the adhesive solidification, the process continues to repeat, the formation of the ideal, uniform multi-porous spherical particles.
Features:
● through the powder granulation, improve mobility, reduce dust flying:
● improve its solubility by powder granulation;
● mixing, granulation, drying in a machine to complete one-step granulation;
● anti-static filter cloth, equipment, safe operation;
● set the pressure relief hole, in the event of an explosion, equipment personnel from harm;
● Equipment without dead ends, loading and unloading materials light and fast, rinse, to meet the GMP specification.
Technical Data Sheet:
|
project |
unit |
model |
|
3 |
5 |
15 |
30 |
60 |
120 |
200 |
300 |
500 |
|
Raw material container |
capacity |
L |
12 |
22 |
45 |
100 |
220 |
420 |
670 |
1000 |
1500 |
|
diameter |
mm |
300 |
400 |
550 |
700 |
1000 |
1200 |
1400 |
1600 |
1800 |
|
Production capacity |
Minimal |
Kg |
1.5 |
4 |
10 |
15 |
30 |
80 |
100 |
150 |
250 |
|
maximum |
Kg |
4.5 |
6 |
20 |
45 |
90 |
160 |
300 |
450 |
750 |
|
Fan |
Air volume |
m3/h |
1000 |
1200 |
1400 |
1800 |
3000 |
4500 |
6000 |
7000 |
8000 |
|
Wind pressure |
mmH2O |
375 |
375 |
480 |
480 |
950 |
950 |
950 |
950 |
950 |
|
power |
Kw |
3 |
4 |
5.5 |
7.5 |
11 |
18.5 |
22 |
30 |
45 |
|
Steam consumption |
Kg/h |
15 |
23 |
42 |
70 |
141 |
211 |
282 |
366 |
451 |
|
Compressed air consumption |
m3/min |
0.9 |
0.9 |
0.9 |
0.9 |
1.0 |
1.0 |
1.1 |
1.5 |
1.5 |
|
Host weight |
Kg |
500 |
700 |
900 |
1000 |
1100 |
1300 |
1500 |
1800 |
2000 |
|
steam pressure |
Mpa |
0.3～0.6 |
|
temperature |
℃ |
Room temperature -120 ℃ range can be adjusted |
|
Time of operation |
min |
With material characteristics 45~90 |
|
Material yield |
﹪ |
≥99 |
|
noise |
dB(A) |
Fan and host isolation installation, noise≤75 dB(A) |
Host dimensions
L×W×H |
m |
1.0×0.6
×2.1 |
1.2×0.7
×2.1 |
1.25×0.9
×2.5 |
1.6×1.1
×2.5 |
1.85×1.4
×3 |
2.2×1.65
×3.3 |
2.34×1.7
×3.8 |
2.8×2.0
×4.0 |
3×2.25
×4.4
|
|
