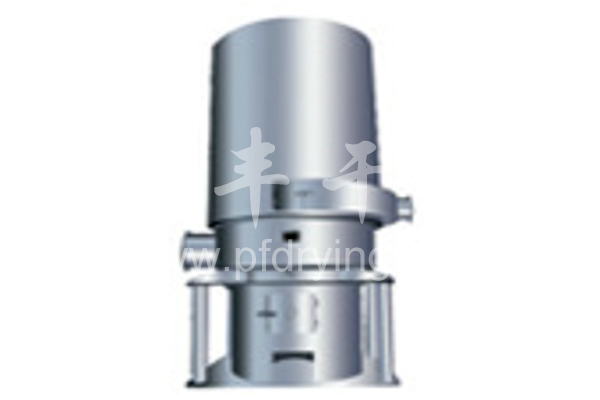

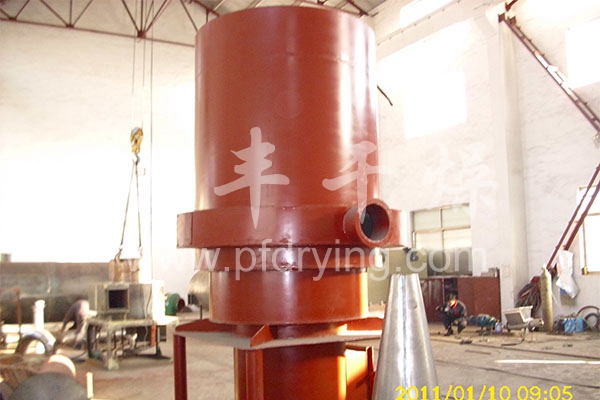

JRF series of coal - fired hot stove

category：Heat Source Equipment

product description：The furnace for the common hot air device, with a variety of materials supporting the use of drying equipment. Widely used in food, seeds, feed, fruit, dehydrated vegetables, mushrooms, fungus, white fungus, tea, tobacco and other agricultural products, food, pharmaceuticals, chemical raw materials, light and heavy industrial products, heating dehumidification, can also be used for heating facilities and Treasury dehumidification and so on.

Product Details
Description: Furnace for the common hot air device, with a variety of materials supporting the use of drying equipment

Category: heat source equipment series
Detailed description:

application:
    The furnace for the common hot air device, with a variety of materials supporting the use of drying equipment. Widely used in food, seeds, feed, fruit, dehydrated vegetables, mushrooms, fungus, white fungus, tea, tobacco and other agricultural products, food, pharmaceuticals, chemical raw materials, light and heavy industrial products, heating dehumidification, can also be used for heating facilities and Treasury dehumidification and so on.
principle:
    The furnace heating and heat as a whole to the high temperature parts of the furnace for the latest indirect heating technology, smoke and air each way, heating absolutely pollution-free, thermal efficiency up to (60-75%), heating fast, small size, Easy to install, reliable and low price (compared to a tonne boiler, the heating system is only half the price of the boiler heating system).
Features:
    To take the high temperature measures, so that its life than the tube-type hot stove greatly extended, and the use of flue gas longitudinal erosion heat sink and negative pressure type of smoke, heat transfer part of the product is not dust, no cleaning, thermal stability. Can be used for a variety of coal or diesel as fuel, and with a secondary air into the combustion device is complete, the furnace of the technology have reached the leading domestic level.

Technical Parameters:

Model / parameter Output heat × 105kcal / h Output air volume (m3 / h) Hot air temperature (℃) Coal consumption (kg / h) Flue gas fan model
JRF4-2.5 1.045 1500-560 60-200 10-12 Cooking with cooking 80-100W
JRF4-4 1.672 3500-930 60-200 14-17 Cooking with cooking 200-300W
JRF4-8 3.344 5600-1480 60-200 18-24 Y5-47 No2.8C 1.1KW
JRF5-15 6.270 12000-2160 60-300 40-45 Y5-47No 4C 2.2kw
JRF5-30 12.54 25000-4330 60-300 80-85 Y5-47 No4C 3kw
JRF5-40 16.72 28000-5600 60-300 115-125 Y5-47 No4C 3kw
JRF5-60 25.08 45000-8600 60-300 160-170 Y5-47 No4C  3kw
JRF6-80 33.44 83000-12500 60-300 240-250 GY2-1 11KW
JRF6-160 66.88 134400-23000 60-300 480-490 GY4-1 18.5kw
JRF6-200 83.60 170000-28000 60-300 600-620 GY4-1 18.5kw
