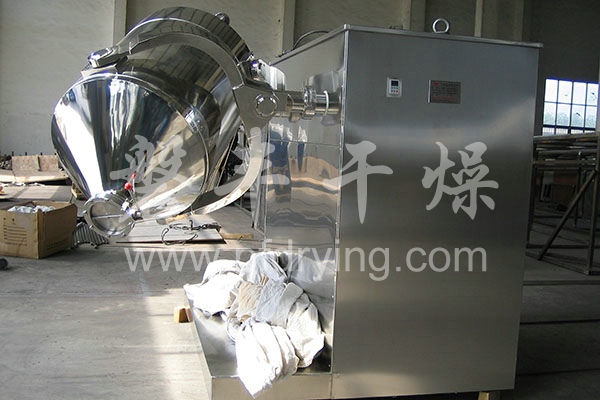

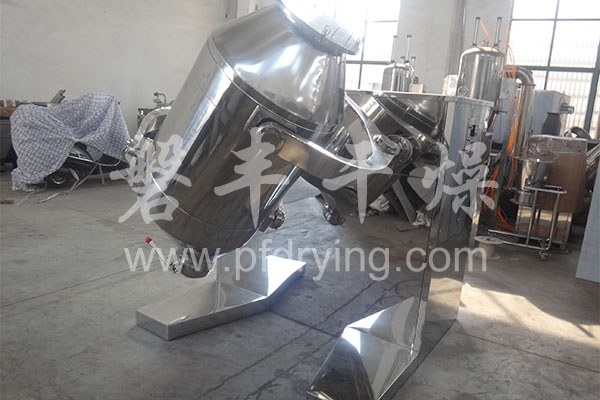

SYH series of three - dimensional motion mixer

category：Mixing Equipment

product description：SYH series of three-dimensional motion mixer because the mixed barrel with a multi-directional movement, so that the barrel of the material cross-mixing points, mixing effect, uniformity of up to 99.9%, the maximum load factor of 0.9 (ordinary mixer is 0.4 ~ 0.6), mixing time is short, high efficiency. The barrel of the machine is unique in its design. The inner wall of the barrel is finely polished, no dead ends, no pollution material,

Order online


Product Details

Performance characteristics

The loading of the cylinder under the guidance of the drive shaft, for the cycle of translation, rotation and roll and other complex movement, to promote the material along the cylinder for three-way movement, in order to achieve a variety of materials flow, Doping. To achieve the purpose of uniform mixing.

Adapt to material

◎ multi-directional movement of the machine, the material without centrifugal force, no heavy segregation and stratification, accumulation phenomenon, the components may have a disproportionate weight ratio, high mixing rate, is the ideal mix of various products.

◎ cylinder loading rate, up to 90% (ordinary mixing machine only 50%), high efficiency, short mixing time.

◎ cylinder around the transition for the arc, after precision polishing.

◎ for pharmaceutical, chemical, food, light industry, electronics, machinery, mining and metallurgy, the country

◎ anti-industry and a variety of scientific research units of powder, granular materials, high uniformity of mixing.

Schematic

三维运动混合机结构示意图

Technical specifications

model	SYH-5	SYH-15	SYH-50	SYH-100	SYH-200	SYH-400	SYH-600	SYH-800	SYH-1000	SYH-1200	SYH-1500	SYH-2000
Barrel volume(L)	5	15	50	100	200	400	600	800	1000	1200	1500	2000
Maximum charge volume(L)	4.5	13.5	45	90	180	360	540	720	900	1080	1350	1800
Maximum loading weight(kg)	1.5-2.7	4-8.1	15-27	30-54	50-108	100-216	150-324	200-432	250-540	300-648	400-810	500-1080
Spindle speed(r/min)	0-20	0-20	0-20	0-20	0-15	0-15	0-13	0-10	0-10	0-9	0-9	0-8
Motor Power（kw）	0.25	0.37	1.1	1.5	2.5	4	5.5	7.5	11	11	15	18.5
size（mm）	600×1000 ×1000	800 ×1200 ×1000	1150 ×1400 ×1000	1250 ×1800 ×1550	1450 ×2000 ×1550	1650 ×2200 ×1550	1850 ×2500 ×1750	2100 ×2650 ×2000	2150 ×2800 ×2100	2000 ×3000 ×2260	2300 ×3200 ×2500	2500 ×3500 ×2800
weight（kg）	100	200	300	800	1200	1200	1500	1700	1800	2000	2400	3000
