CH series tank type mixer
category:Mixing Equipment
product description:CH series tank mixer for mixing powder or wet material, so that different proportions of the main materials mixed evenly. The contact between the machine and the material are made of stainless steel, the gap between the blade and the barrel is small, the mixing without dead angle, the mixing shaft at both ends with a sealing device to prevent the material outside the diarrhea, hopper button control, easy to discharge. Widely used in pharmaceutical, chemical, food and other industries.
product description
Used to mix the powder or wet material, so that different proportions of the main materials mixed evenly.
Performance characteristics

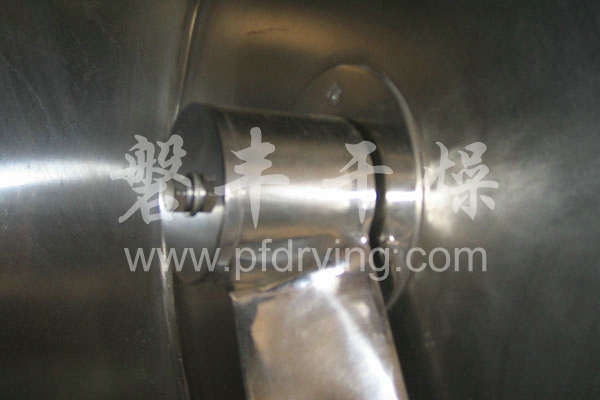

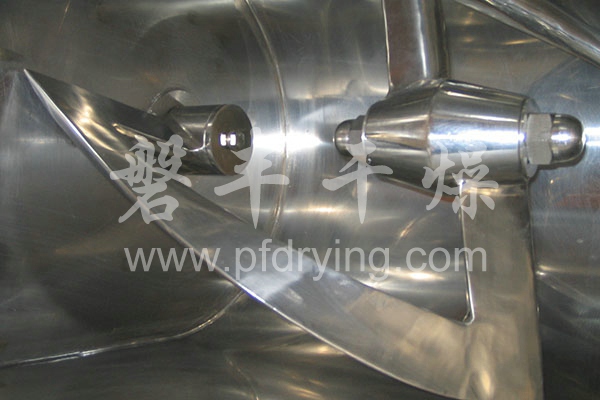

◎ The contact between the machine and the material are made of stainless steel. The gap between the blade and the barrel is small, the mixing is not dead, and the sealing device is installed at both ends of the mixing shaft to prevent the material from leaking.
Adapt to material
Widely used in pharmaceutical, chemical, food and other industries.
Technical specifications
capacity(L) |
100 |
150 |
200 |
400 |
Motor Power(kw) |
2.2 |
3 |
3 |
5.5 |
Stirring speed(rpm) |
24 |
24 |
24 |
24 |
Down angle(×) |
105 |
105 |
105 |
105 |
weight(kg) |
350 |
500 |
650 |
1200 |
Dimensions(mm) |
1400×500×1000 |
1600×600×1100 |
1800×700×1200 |
2000×820×1460 |
